4 Bedroom House Plan - ID 14601

Product image 1
1 / 7
+2

4 Bedroom House Plan - ID 14601

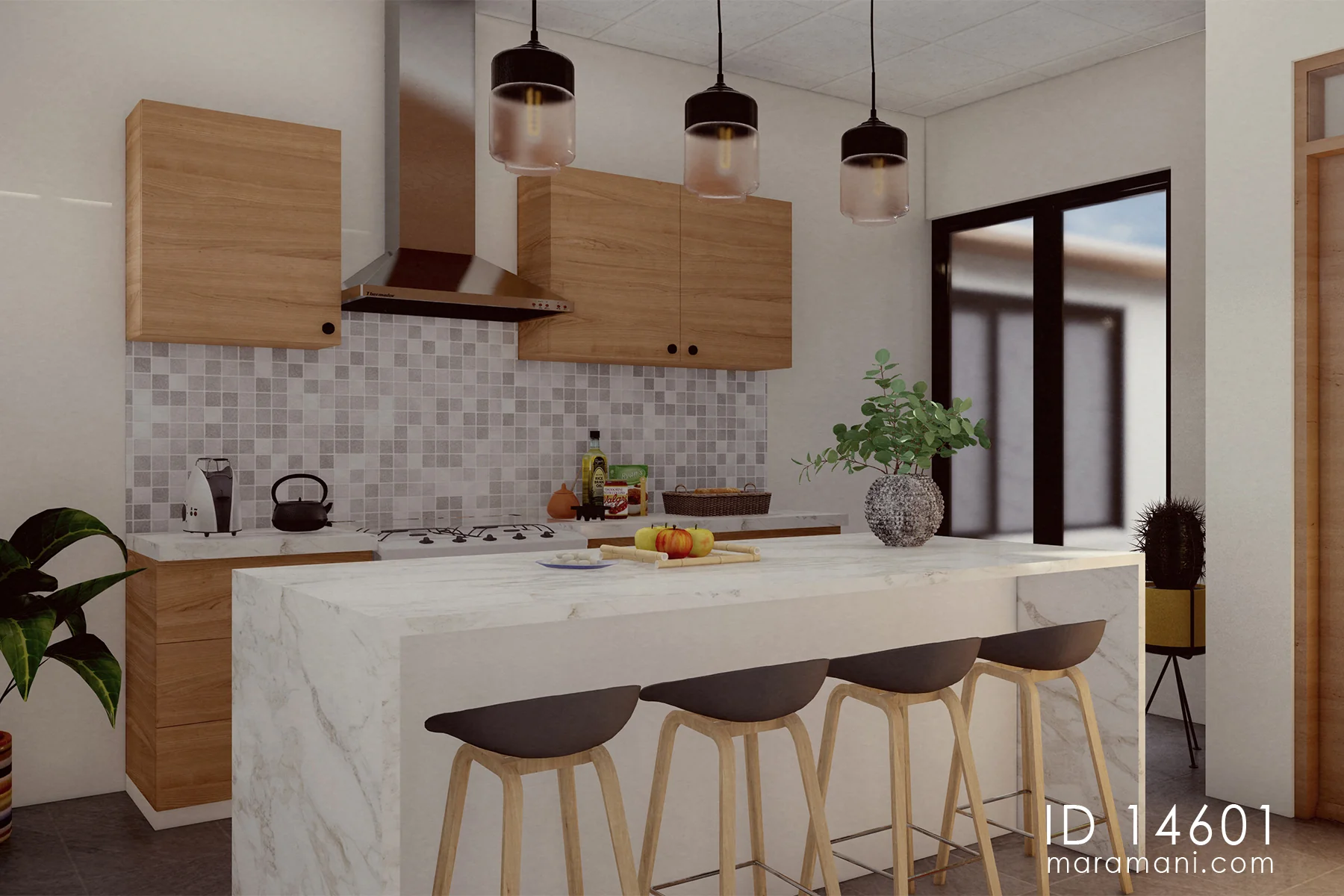

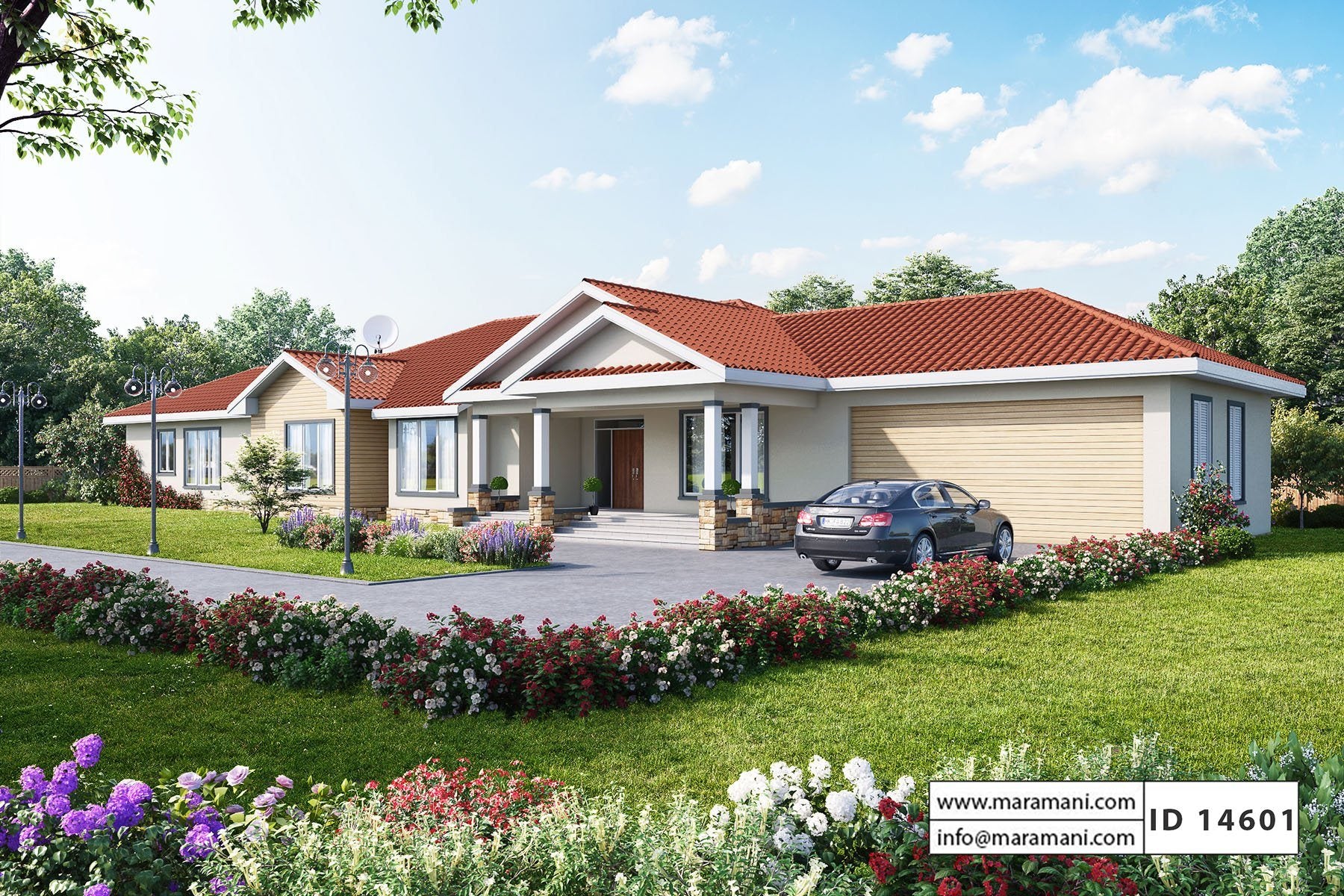

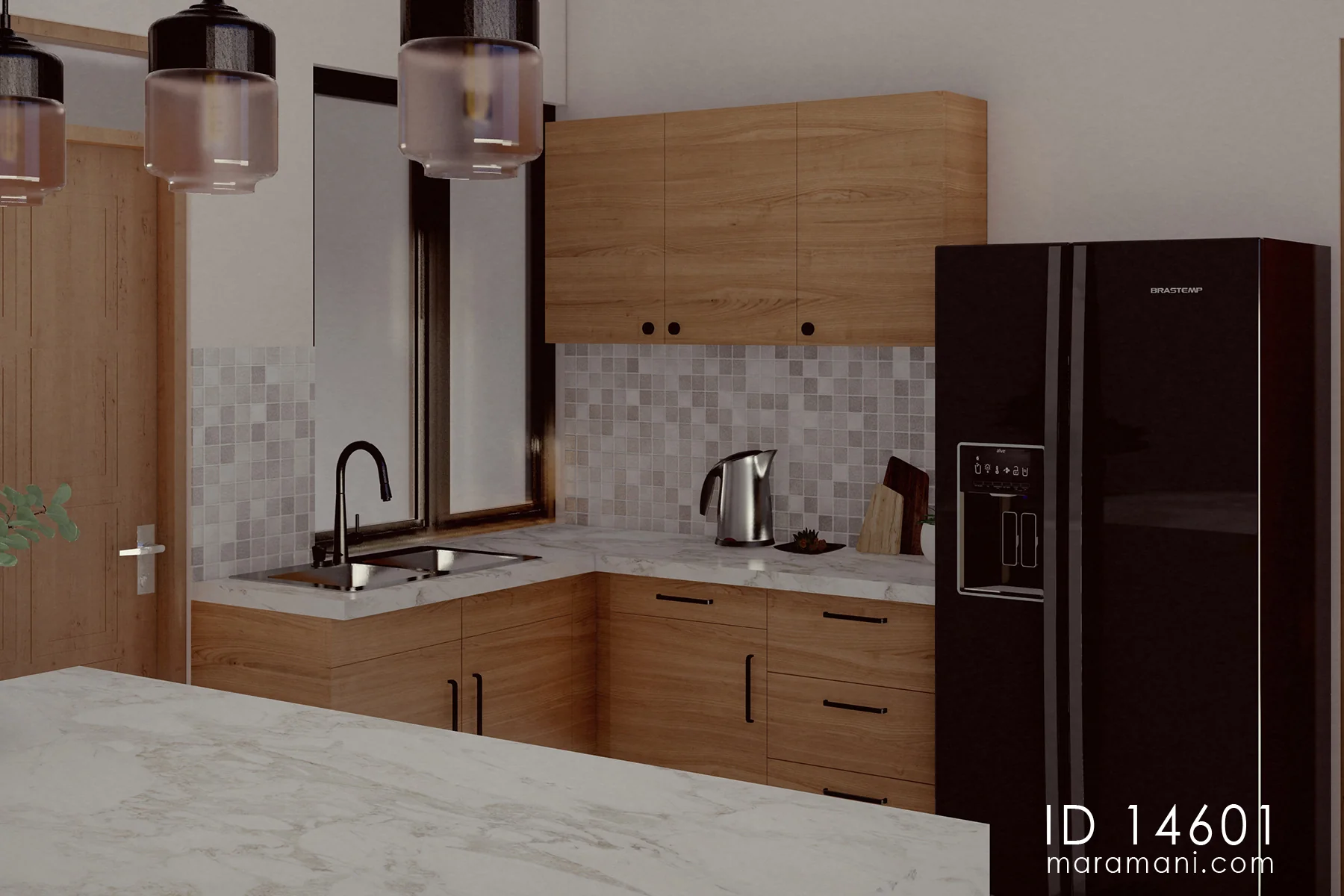

4 bedroom house plan one story with a 2 port garage laid out on an intricately designed floor plan. Each space is separated by a system of openings or doors to allow as much autonomy for each room. The garage at 47 square meters allows 2 vehicles to park comfortably and also includes a separate storage area which can be used for garden tools, bicycles and other material needing to be stored. An open kitchen with a breakfast area connects to a separate formal dining room. This is a rather large plan but will give you all the amenities and privacy you can wish for.

Plan Details

Features Drawings List
Stories: 1
Bedroom: 4
Self-contained rooms: 4
Toilets: 6
Kitchen: 1
Dining room: 1
Living room: 1
Verandah: 2
Pantry: 1
Gaming room: 1
Media/ family room: 1
Study/ library: 1
Outdoor kitchen: 1
Garage: 2 cars

Foundation Plan
Floor plan
Roof plan
Sections
Elevations
Schematic electrical layout
Door and window schedule
Details
Waste water drainage
Floor finishes
Septic tank and soakage pit details
Bill of Quantities (editable excel format)
Schedule of Materials (editable excel format)

*Drawings delivered in PDF and DWG Format

4 bedroom house plan one story with a 2 port garage laid out on an intricately designed floor plan. Each space is separated by a system of openings or doors to allow as much autonomy for each room. The garage at 47 square meters allows 2 vehicles to park comfortably and also includes a separate storage area which can be used for garden tools, bicycles and other material needing to be stored. An open kitchen with a breakfast area connects to a separate formal dining room. This is a rather large plan but will give you all the amenities and privacy you can wish for.
