3 Bedroom House Plan - ID 23405

Product image 1
1 / 6
+1

3 Bedroom House Plan - ID 23405

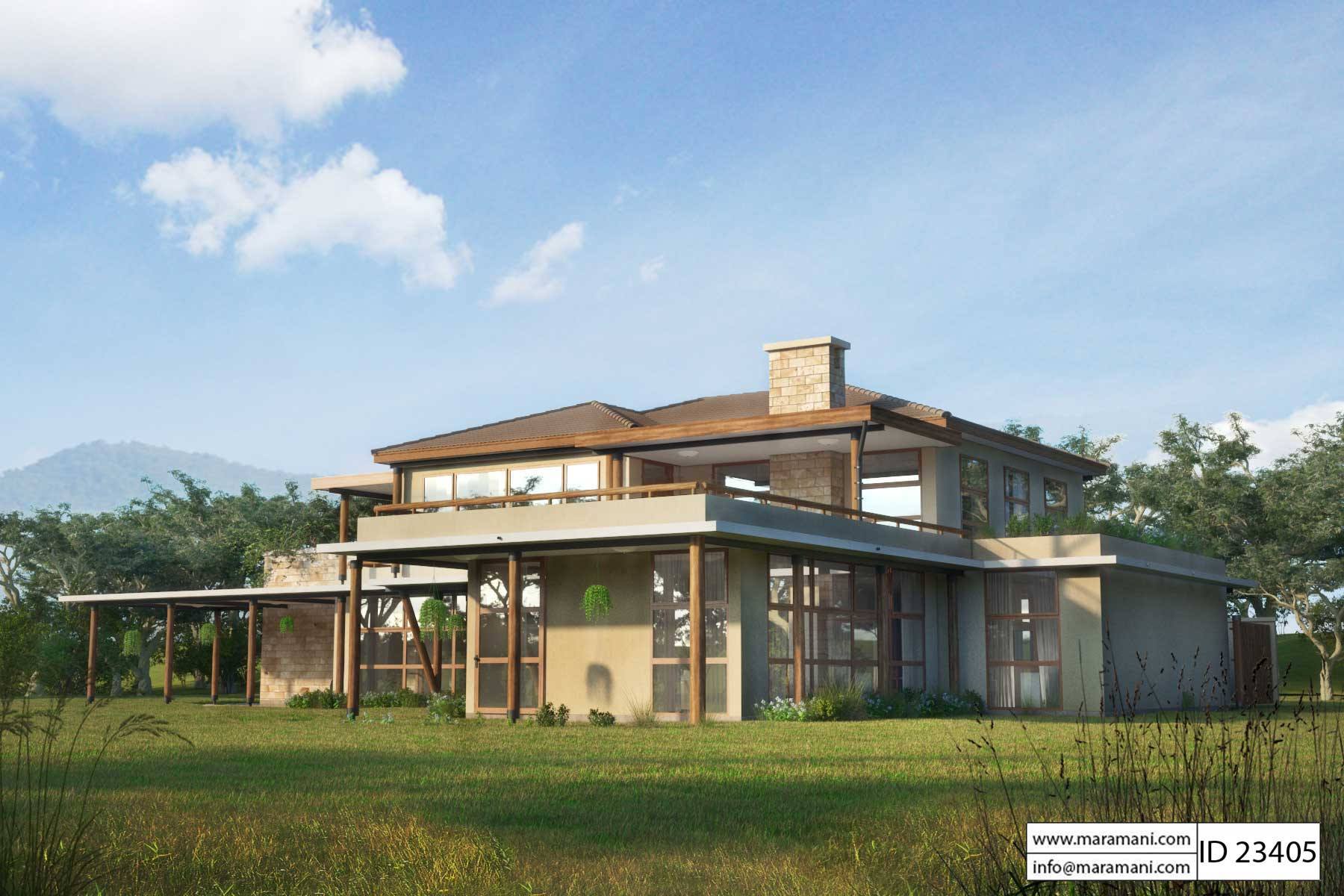

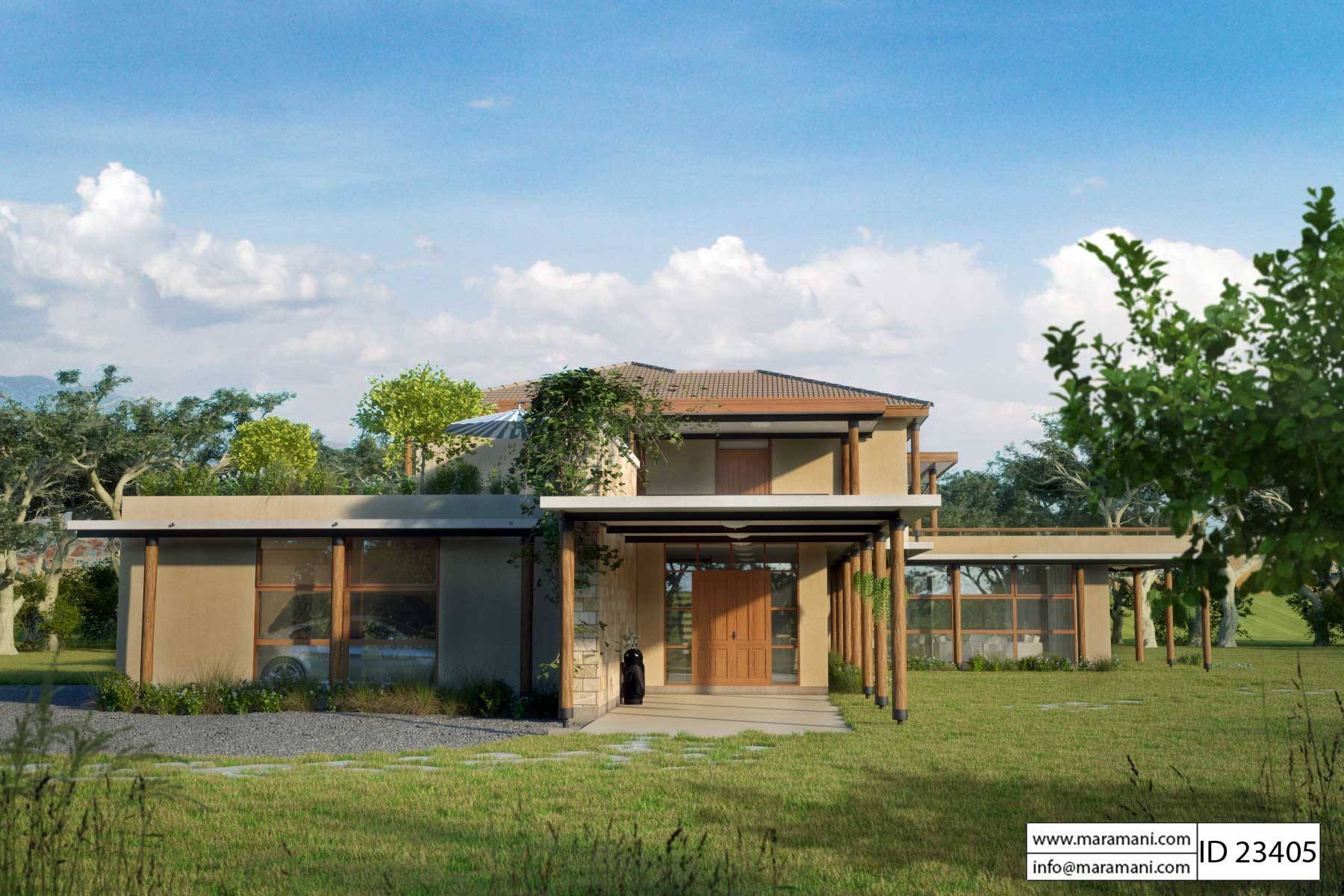

Here’s a huge mansion floor plan with every detail you could imagine that would be great if built in a large compound tucked away from the city hassles. Numerous studies have shown that living closer to nature not only improves mental and physical health immediately, but the change is sustained for a significant period. Where possible architects strive to create designs that will bring the building's occupant closer to nature and this is especially true in this design. Large wooden windows span the entire length of the building which is held up by wooden poles. The plan is open to allow natural ventilation and light to every corner of the building. A family room is positioned to allow a great view of the property and nature while allowing direct access to an impressive roof deck and roof garden. A truly perfect house for a mid-sized family who wants to live a long healthy life.

Plan Details

Features Drawings List
Stories: 2
Bedroom: 3
Self-contained rooms: 3
Toilets: 4
Kitchen: 1
Dining room: 1
Living room: 1
TV room/Study: 1
Family room: 1
Open terrace: 3
Store: 1

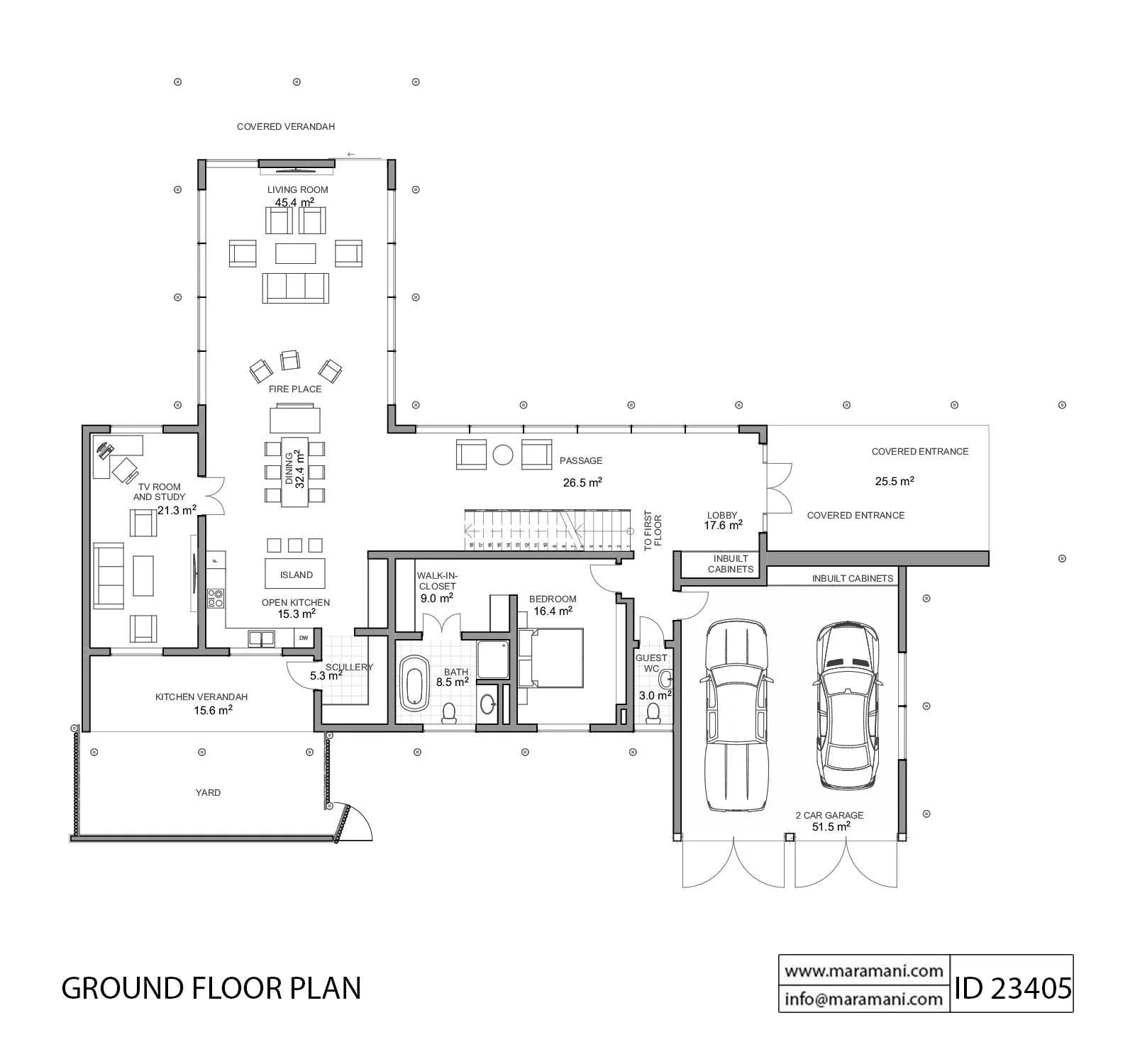

Floor plan
Elevations
Sections
Roof plan
Foundation plan
Door and window schedule and lists
Details
Schematic electrical layout
Floor finishes
Entrance gate and perimeter wall
Septic tank and soakage pit
Structural Drawings
Electrical Drawings

Bills of Quantities (Delivered in Excel format)

*Drawings delivered in PDF and DWG Format
