3 Bedroom House Plan - ID 23302

Product image 1
1 / 5

3 Bedroom House Plan - ID 23302

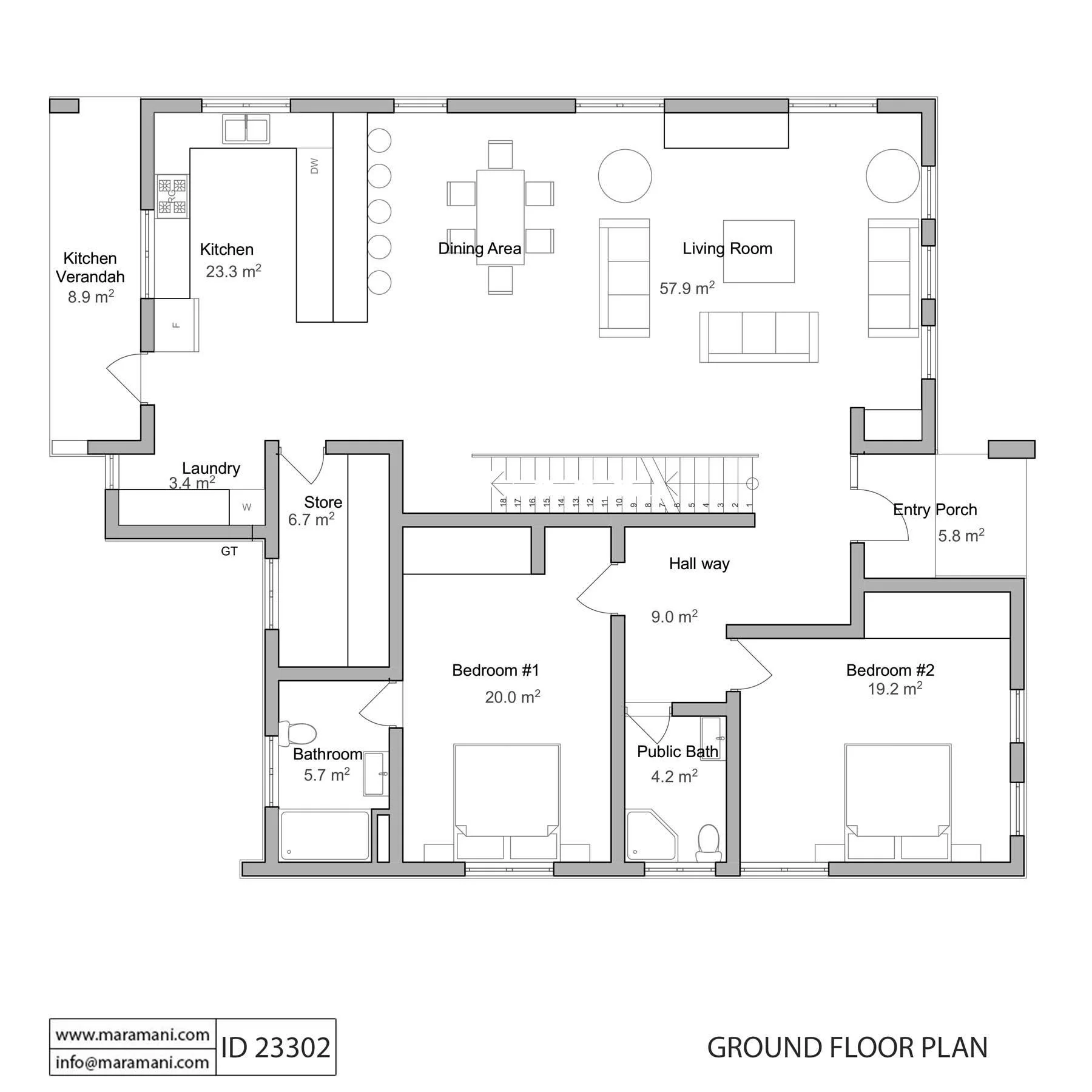

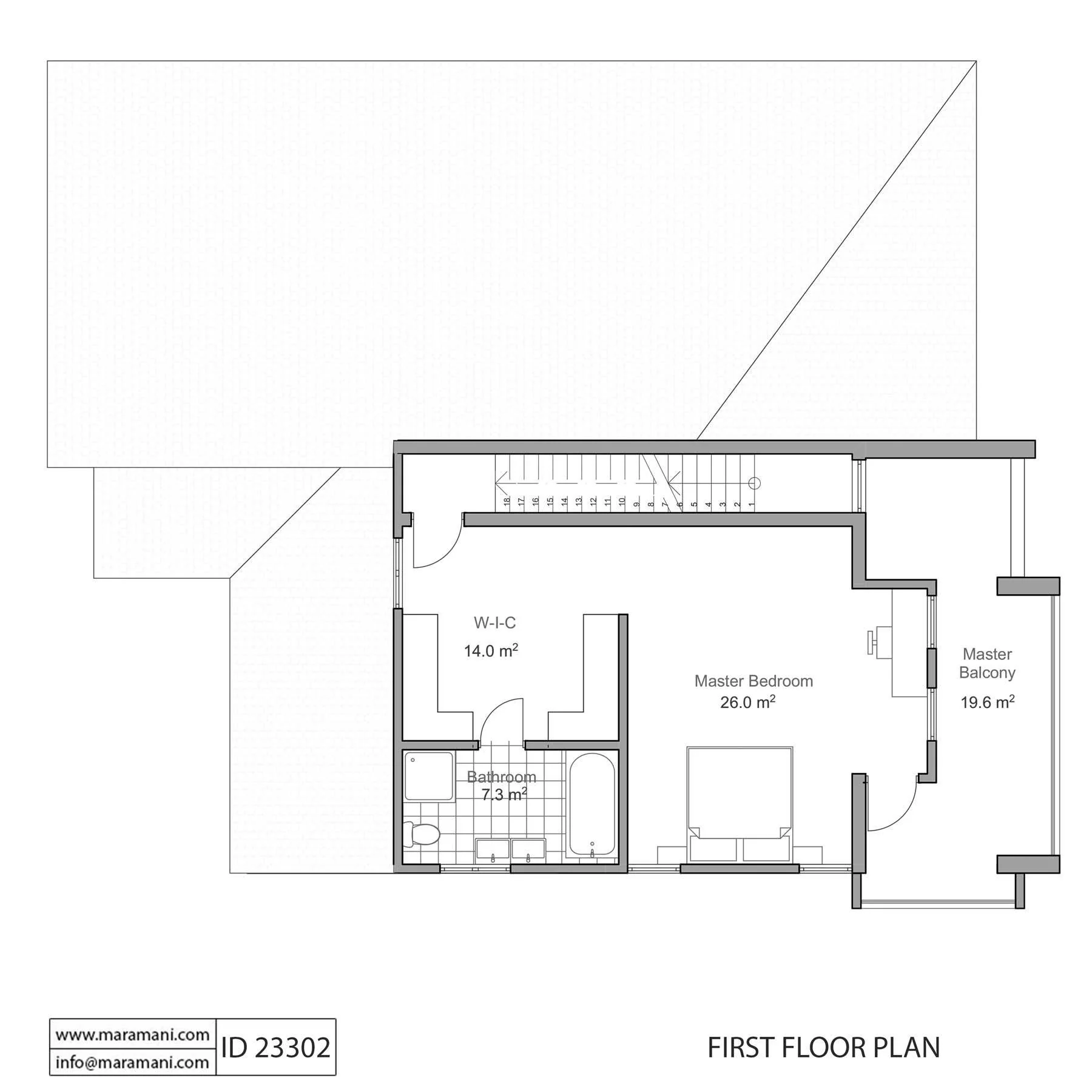

A wonderful house plan with only the master bedroom upstairs and all remaining facilities and 2 bedrooms on the ground floor. A beautiful open staircase commands a view over the open plan kitchen, dining, and living room. The kitchen has access to a store, a laundry, and its own verandah, making it easy to bring in the groceries and take the laundry out for hanging. From the entrance to the master bedroom, a passage leads past a big walk-in closet to the sleeping area and out to a private balcony overlooking the front yard. The master bathroom comes with the luxury of double vanities, a shower, and a bathtub. A truly great piece of modern design for the simple family.

Plan Details

Features Drawings List

Stories: 2
Bedroom: 3
Self-contained rooms: 2
Toilets: 3
Kitchen: 1
Dining room: 1
Living room: 1
Balcony: 1
Verandah: 2
Laundry: 1
Store: 1

Floor plan
Elevations, Sections
Roof plan
Foundation plan
Door and window schedule and lists
Details
Schematic electrical layout
Floor finishes
Entrance gate and perimeter wall
Septic tank and soakage pit

*Drawings delivered in PDF and DWG Format
